Date: March 13, 2008
Experiment: 29
Location: Smeltfest 08, Lexington VA
Team: Skip Williams, Jake Keen

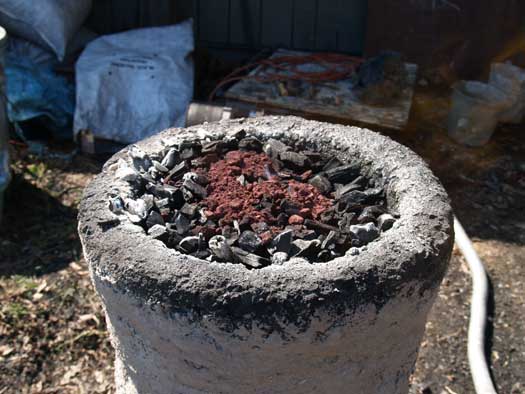

Furnace: Medium Shaft
clay cobb

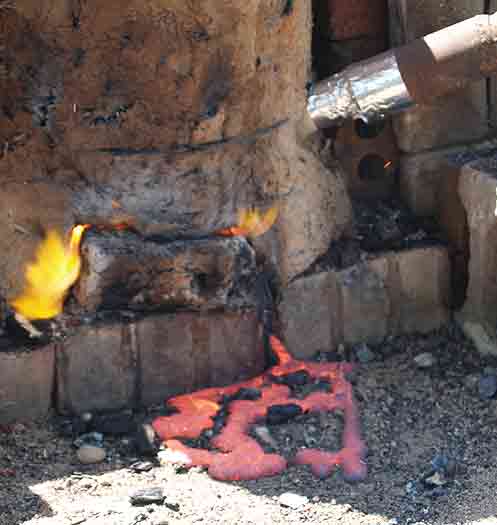

tap arch (bottom extraction)
bellows plate with blow hole
Size: 30 cm x 105 H
Source: based on Williams' observations
at Eindhoven
Tuyere: tapered copper to 2.7 cm ID
3 cm dia. blow hole
Placement: natural set base
about 6 cm set back to tuyere tip
Bellows: electric blower
Air: not measured
Charcoal: 45 kg broken hardwood
Consumption: about 2 kg charcoal every
8 minutes
7.7 m/kg
Ore: Virginia Rock @ 66% Fe
23 kg (roasted)
Sequence: ore added about every 12
minutes
charges range from .5 to 2.3 kg each
7.5 m/kg
Duration: about 4 1/2 hours (not
including preheat)

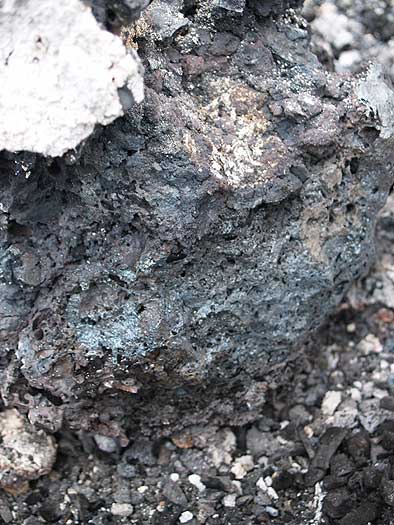

Result: 5.5 kg bloom - soft iron with
some carbon
Yield = 24 %
Notes: - bloom has pronounced crescent
shape
|
|
Date: March 16, 2008
Experiment: 30
Location: Smeltfest 08, Lexington VA
Team: Jake Keen
Furnace: Medium Shaft
clay cobb
tap arch (bottom extraction)

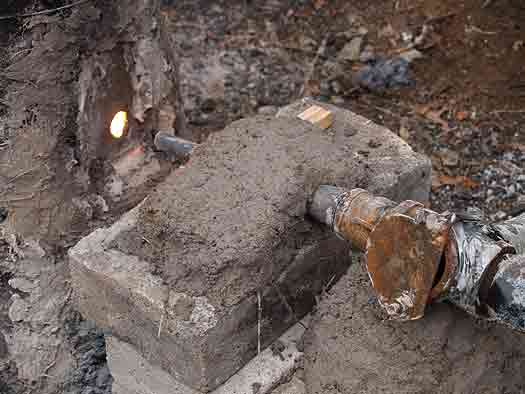

bellows plate with blow hole
Size: 30 cm x 105 H
Source: based on Williams' observations
at Eindhoven
Tuyere: tapered copper to 2.7 cm ID
3 cm dia. blow hole
Placement: natural set base
about 6 cm set back to tuyere tip
Bellows: electric blower
Air: not measured
Charcoal: 60 kg broken hardwood
Consumption: 2 kg charcoal every 13
minutes (varies)
7.5 m/kg
Ore: DARC Dirt 1 @ 55% Fe
30.2 kg
Sequence: ore charges range from .1 to
2.5 kg each
9.2 m/kg
Duration: about 5 1/2 hours (not
including preheat)
Result: 1.7 kg bloom - high carbon
Yield = 6 %
Notes: - bloom has pronounced crescent
shape |
|
|
Date: March 17, 2008
Experiment: 31
Location: Smeltfest 08, Lexington VA
Team: Jake Keen, Skip Williams
Furnace: Medium Shaft
clay cobb
tap arch (bottom extraction)
bellows plate with blow hole
Size: 30 cm x 105 H
Source: based on Williams' observations
at Eindhoven
Tuyere: tapered copper to 2.7 cm ID
4 cm dia. blow hole
Placement: natural set base
about 13.5 cm set back to tuyere tip
set at 22 down
Bellows: electric blower
Air: not measured
Charcoal: 68 kg broken hardwood
Consumption: 2 kg charcoal every 12
minutes (varies) 4.9 m/kg
Ore: Virginia Rock @ 66 % Fe
59.5 kg
Sequence: ore charges range from 1 to 3
kg each
5.4 m/kg
Duration: about 5 1/2 hours (not
including preheat)
Result: 7.7 kg bloom - soft iron
Yield = 13 %
Notes: - position of the blow hole
moved up over smelt results in tall, narrow bloom
|
|
Date: April 13, 2008
Experiment: 32 / D14
Location: Wareham, ON
Team: Neil Peterson, Ken Cook

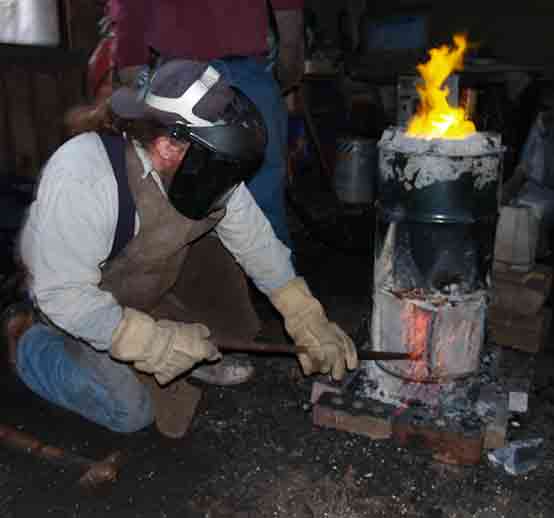

Furnace: Econo Norse
smaller size in metal barrel frame
set on plinth (bottom extraction)
Size: 20 x 70 H
Source: based on DARC design
Tuyere: 25 mm ID ceramic tube
Placement: 15 cm from base
about 5 cm in from wall
angle at 20 down
Bellows: electric blower
Air: start at about 450 – finish at 365
l / min
Charcoal: 34 kg broken hardwood
Consumption: about 2 kg charcoal every 14
- 17 minutes
6.9 m/kg
Ore: DARC Dirt 1 @ 55 % Fe
18 kg
Sequence: ore added as 2 kg charges for
most of smelt
considerable re-cycle of tap slag
6.9 m/kg
Duration: about 4 1/2 hours (not
including preheat)
Result: 2 kg bloom – workable iron
Yield = 11%
Notes: - full scale test of DARK Dirt 1
in standard smelter
|
|
|
Date: April 30, 2008
Experiment: 33

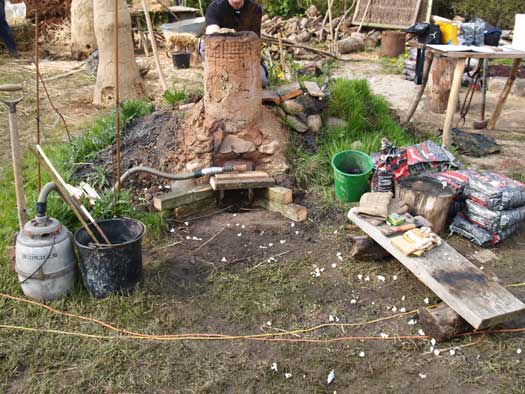

Location: Heltborg, Denmark
Team: Arne Espelund
Furnace: Norse Medium Shaft
clay cobb
bellows plate
tap arch (bottom extraction)
Size: 25 x 88 H (used)
Source: test of two stage process
suggested by Espelund
Tuyere: 25 mm ID steel pipe (tapered)
Placement: 10 cm base
set just flush with bellows plate
angle at 20 down
Bellows: 'Danish standard' vacuum
blower
Charcoal: 13 kg broken hardwood
Consumption: about 1 kg charcoal every
11 minutes
9 m/kg
Ore: Guldager Bog @ 55 % Fe
15 kg
Sequence: ore added as 1 kg charges
4.8 m/kg
Duration: about 2 1/2 hours (not
including preheat)
Result: 11.5 kg high iron content slag
Notes: - test of theoretical method
proposed by Espelund,
stage one is producing volume of iron rich slag...
|
|
|
Date: May 2, 2008
Experiment: 34
Location: Heltborg, Denmark
Team: Arne Espelund
Furnace: Norse Medium Shaft
clay cobb
bellows plate
tap arch (bottom extraction)
Size: 25 x 88 H (used)
Source: test of two stage process
suggested by Espelund
Tuyere: 25 mm ID steel pipe (tapered)
Placement: 10 cm base
set just flush with bellows plate
angle at 20 down
Bellows: 'Danish standard' vacuum
blower
Charcoal: 12 kg broken hardwood
Consumption: about 2 kg charcoal every
11 minutes
7.2 m/kg
Ore: Gromps from stage one
7.75 kg total
Sequence: ore added as 1 kg charges
4.6 m/kg
Duration: about 2 1/2 hours (not
including preheat)
Result: no iron is produced
Notes: - test of theoretical method
proposed by Espelund, stage two is re-smelting gromps to
bloom
- method cosidered overly complex
- may not have been enough 'ore' material used
|
|
Date: May 4, 2008
Experiment: 35
Location: Heltborg, Denmark
Team:
Furnace: Norse Medium Shaft
clay cobb
bellows plate
tap arch (bottom extraction)
Size: 25 x 113 H
Source: based on past experience
Tuyere: 25 mm ID steel pipe (tapered)
Placement: 10 cm base
set just flush with bellows plate
angle at 23 down
Bellows: 'Danish standard' vacuum blower
Charcoal: 20 kg broken hardwood
Consumption: about 2 kg charcoal every 9
minutes
16.6 m/kg

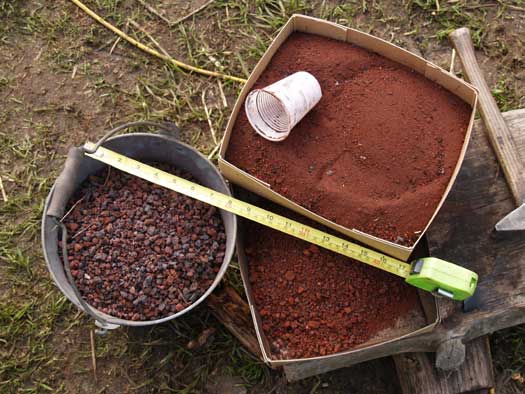

Ore: Heltborg / Swedish / Guldager bog
ores
E 55 % Fe - 15.2 kg total
Sequence: ore added as .8 to 1.6 kg
charges
14.2 m/kg
Duration: about 3 1/2 hours (not
including preheat)
Result: 1.8 kg, fragments in slag block
Notes: - demonstration smelt of standard
method
|
|
Date: June 14, 2008
Experiment: 36 / D15
Location: Wareham, ON
Team: Ken Cook, Neil Peterson
Furnace: Banked Short Shaft
Size: 20 x 70 H
Source: Viking Age - standard build
Tuyere: 25 mm ID ceramic tube
Placement: 11 cm from base
about 3.5 cm in from wall
angle at 22.5 down
Bellows: electric blower
Air: start at about 640 – finish at 735
l / min
Charcoal: 30 kg broken hardwood
Consumption: about 2 kg charcoal every 10
minutes
5.7 m/kg
Ore: DARC Dirt 1 @ 55 % Fe
20 kg
Sequence: ore added as 2 kg charges
4.9 m/kg
Duration: about 3:20 hours (not including
preheat)
Result: 1.9 kg bloom as partially
consolidated - workable iron
Yield = 10 %
Notes: - full scale test of DARK Dirt 1
in standard smelter
|
|
Date: September 27, 2008
Experiment: 37
Location: Troy OH
Team: Ken Cook
Furnace: Short Shaft
set on plinth (top extraction)
Size: 25 x 65 + 20 H
Source: Viking Age - standard build
Tuyere: 25 mm ID ceramic tube
Placement: 20 cm from base
about 5 cm in from wall
angle at 22.5 down
Bellows: electric blower
Air: start at about 450 – finish at 365
l / min
Charcoal: 67 kg broken hardwood
Consumption: about 2 kg charcoal every 10
minutes
6.0 m/kg
Ore: Williamsburg Rock
35 kg
Sequence: ore added as 1.1 - 2.2 charges
6.3 m/kg
Duration: about 6 hours (not including
preheat)
Result: 9.5 kg bloom – workable iron
Yield = 27 %
Notes: - demonstration smelt (Quad State
08) |
|
|
Date: October 12, 2008
Experiment: 38 / D16
Location: Wareham, ON
Team: Neil Peterson, Ken Cook
Furnace: Banked Short Shaft
bellows plate with blow hole
top extraction
Size: 22 x 65 + 20 H
Source: based on Hals, Iceland
Tuyere: blow hole, later inserted - 25
mm ID ceramic tube
Placement: blow hole diameter 8 cm
tuyere pipe set to 15 down, about 6 cm back
as insert, angle at 10 down
Bellows: electric blower
Air: start at about 740 – finish at
1000 (?) l / min
Charcoal: 46 kg broken hardwood
Consumption: about 2 kg charcoal every
13 minutes
4.9 m/kg
Ore: Virginia Rock (poor) mixed with
Taconite (275/400) 23 kg
Sequence: ore added as 1.1 kg charges
for most of smelt
10.2 m/kg
Duration: about 6 1/2 hours (not including
preheat)
Result: 4.9 kg bloom – workable iron
Yield = 20 %
Notes: - 'work dynamic test' for
proposed Hals layout
- test of bellows plate / blow hole system
|
|
|
Date: November , 2008
Experiment: 39 D/17
Location: Wareham, ON
Team: Ken Cook, Neil Peterson

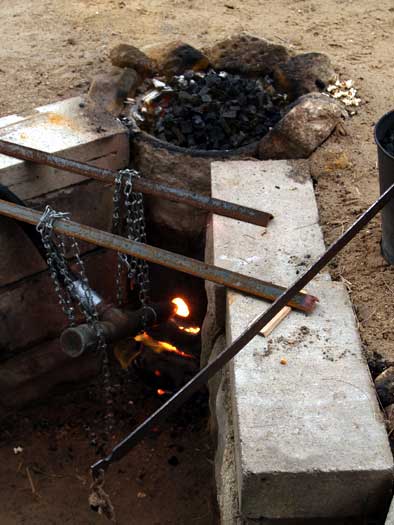

Furnace: Banked Short Shaft
bellows plate with blow hole
tuyere hung from above
top extraction
Size: 24 - 26 x 65 + 20 H
Source: based on Hals, Iceland
Tuyere: blow hole, tapered tuyere
Placement: blow hole diameter 5 cm
tuyere pipe set to 25 down, about 2.5 cm back
Bellows: electric blower
Air: start at about 740 (?) l / min
Charcoal: 48 kg broken hardwood
Consumption: about 2 kg charcoal every
12 minutes
5.7 m/kg
Ore: Virginia Rock (poor) mixed with
Taconite (1/2)
24 kg
Sequence: ore added as .8 increased to
1.6 kg charges
8.1 m/kg
Duration: about 5 hours (not including
preheat)
Result: 3.25 kg bloom – workable iron
Yield = 13 %
Notes: - 'work dynamic test' for
proposed Hals layout
- test of bellows plate / blow hole system
- use of tapered tuyere improves air penetration
- hanging air system alows access, control of smelt
|
|
